GSM9-14 Epoxy Mixer with X-Grid Element
GSM9-14 Epoxy Mixer with X-Grid Element
Regular price
$139.99 USD
Regular price
Sale price
$139.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
STANDARD DESIGN - The Btektech GMS9-14 epoxy mixer adopts 14 X-shape elements, its mixing efficiency is spiral and square type static mixing tube 3-10 times, suitable for all standard 200 m/400 ml cartridges.
APPLICATION - The special X-Grid design is suitable for two-component adhesives such as epoxy resins, polysulfide, sealants, polyurethanes, etc. It can be used in mixing 1,000,000:1 viscosity ratio adhesive and 10,000:1 volumetric ratio adhesive.
EASY CLEANUP - Disposable nozzle and tube, easy to clean, no need for mixing and stirring tools to clean.
APPLICATION - The special X-Grid design is suitable for two-component adhesives such as epoxy resins, polysulfide, sealants, polyurethanes, etc. It can be used in mixing 1,000,000:1 viscosity ratio adhesive and 10,000:1 volumetric ratio adhesive.
EASY CLEANUP - Disposable nozzle and tube, easy to clean, no need for mixing and stirring tools to clean.
Details
Details

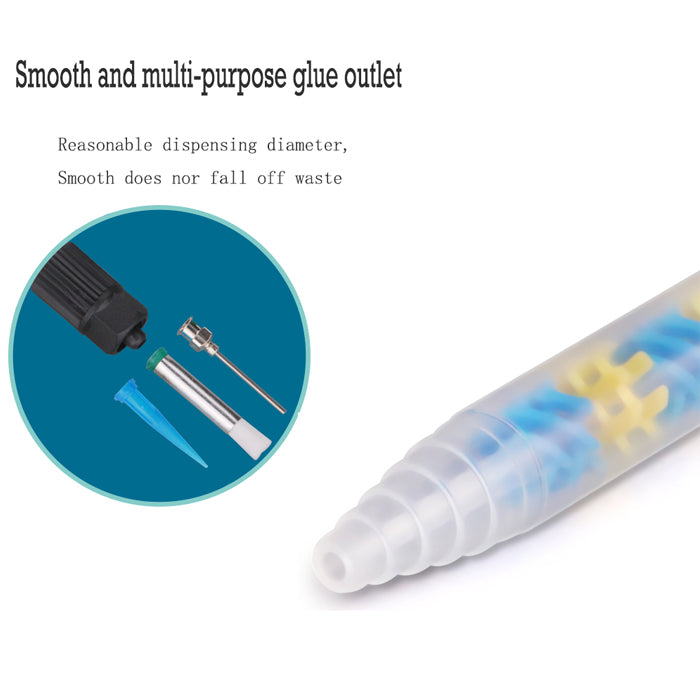

Housing Outlet: Stepped
Mixer Technology: X-Grid mixer

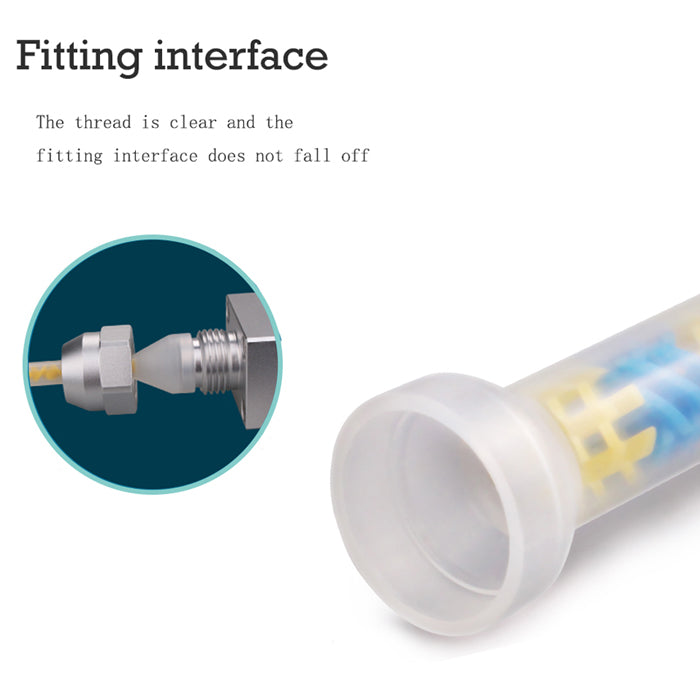

Housing Inlet: Bell connection

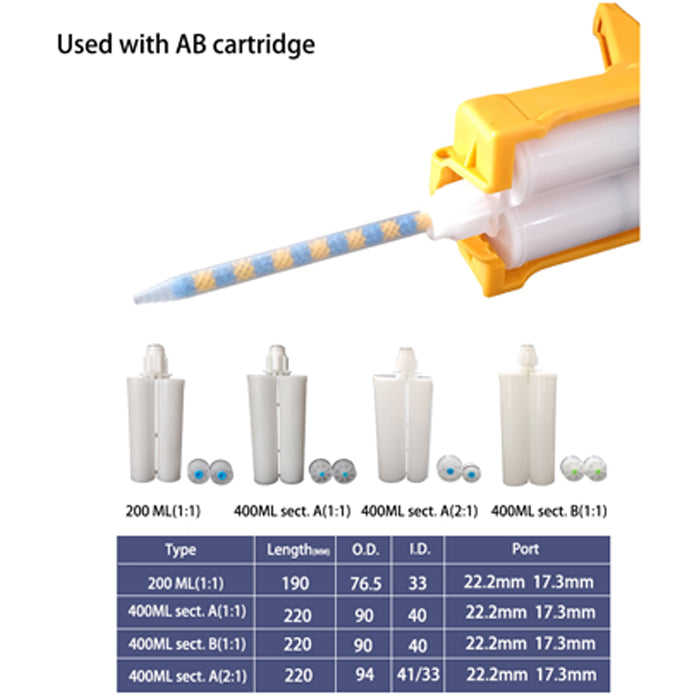

Cartridge Size: 200 ml/400 ml
Material: PP+Nylon
Units / Box: 50/100 pieces

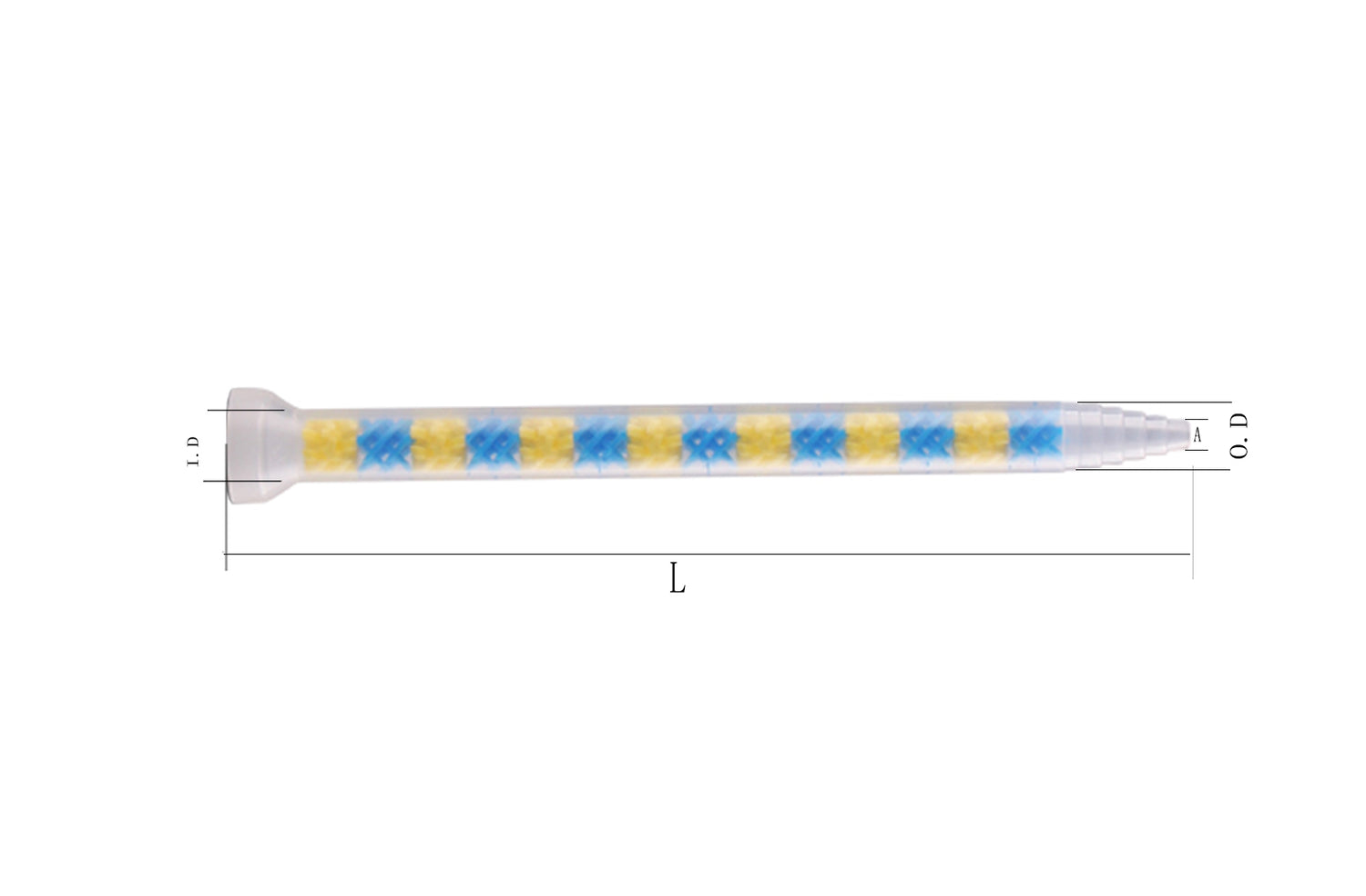

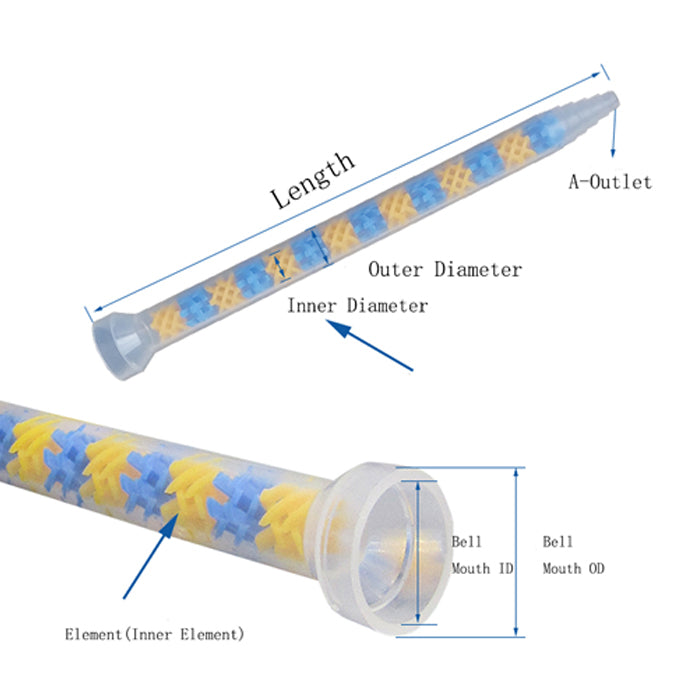

Dimensions
Dimensions
NO: G2

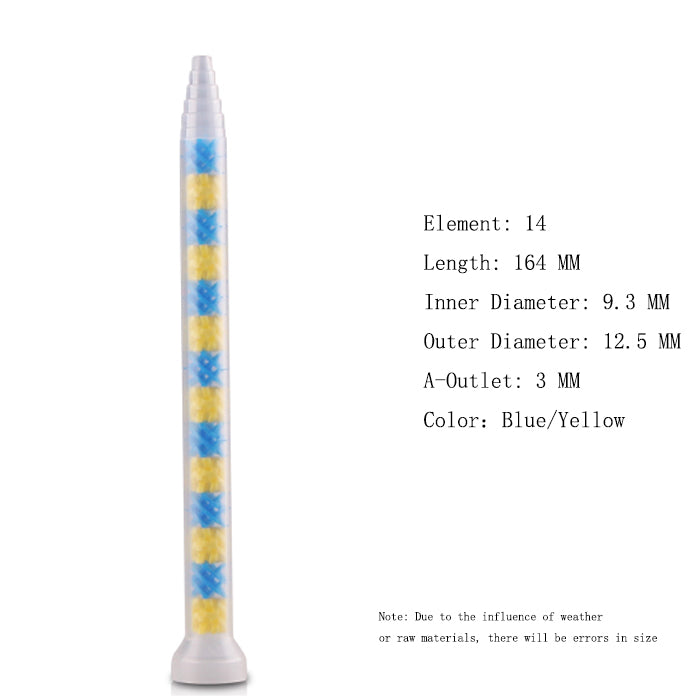

Part No.: GSM9-14
Elements: 14
I.D.(mm): 9.3
L(mm): 164
O.D.(mm): 12.5
A(mm): 3
Inner-core Color: Blue & Yellow
-
