Epoxy Mixing Nozzles for Two-Part Adhesive 5 MM I.D.
Epoxy Mixing Nozzles for Two-Part Adhesive 5 MM I.D.
Regular price
$49.99 USD
Regular price
$49.99 USD
Sale price
$49.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

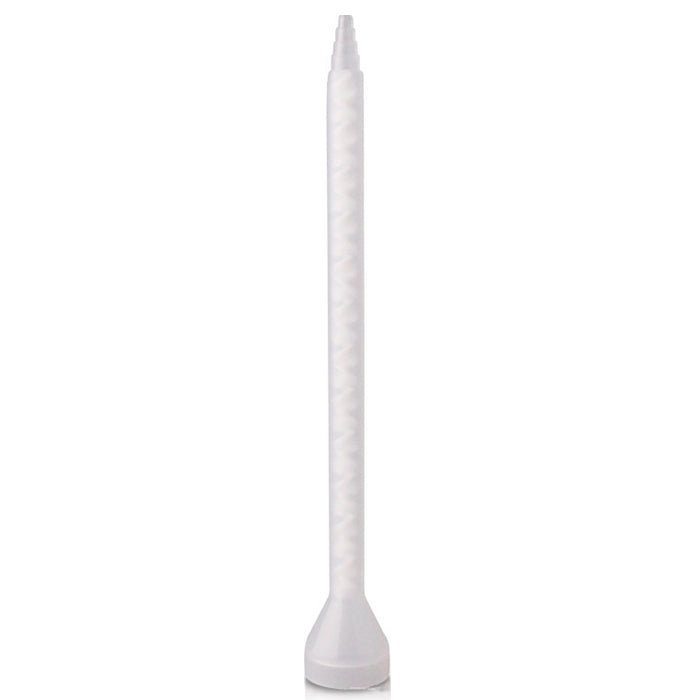

STANDARD DESIGN - The Btektech mixing nozzles are made of plastic material, with bell-mouth and spiral inner-core, suitable for all standard 200 ml or 400 ml cartridges, the inside diameter is 5 mm. Btektech PMC05-24 can replace Sulzer Mixpac MCH 05-24T or 102415, Btektech PMS05-32 can replace Sulzer Mixpac MCH 05-32T or 102416.
APPLICATION - It is often used for the high-pressure operation of glue filling machines,
can be used as a handheld device or mounted on a stand or robot, for the mixing of epoxies, composites silicones, polyurethanes, and methyl methacrylates.
EASY CLEANUP - Disposable nozzle and tube, easy to clean, no need for mixing and stirring tools to clean.
APPLICATION - It is often used for the high-pressure operation of glue filling machines,
can be used as a handheld device or mounted on a stand or robot, for the mixing of epoxies, composites silicones, polyurethanes, and methyl methacrylates.
EASY CLEANUP - Disposable nozzle and tube, easy to clean, no need for mixing and stirring tools to clean.
Details
Details

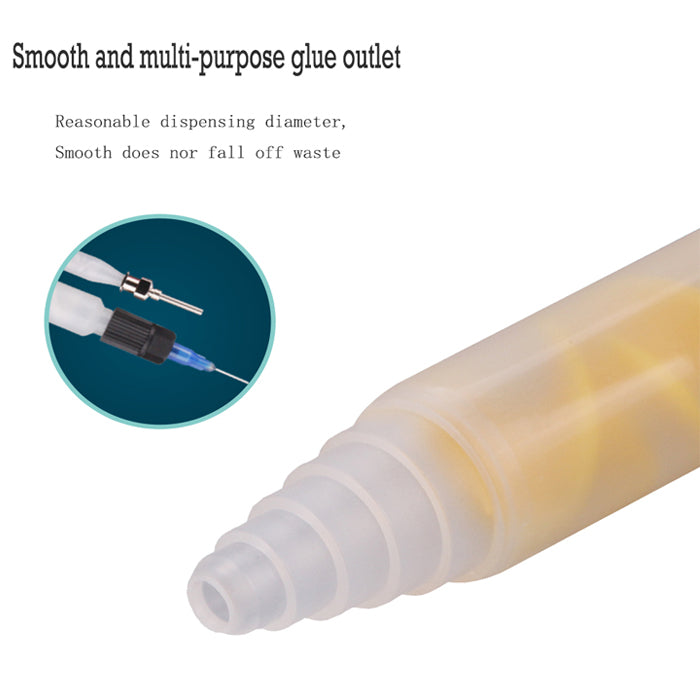

Housing Outlet: Stepped

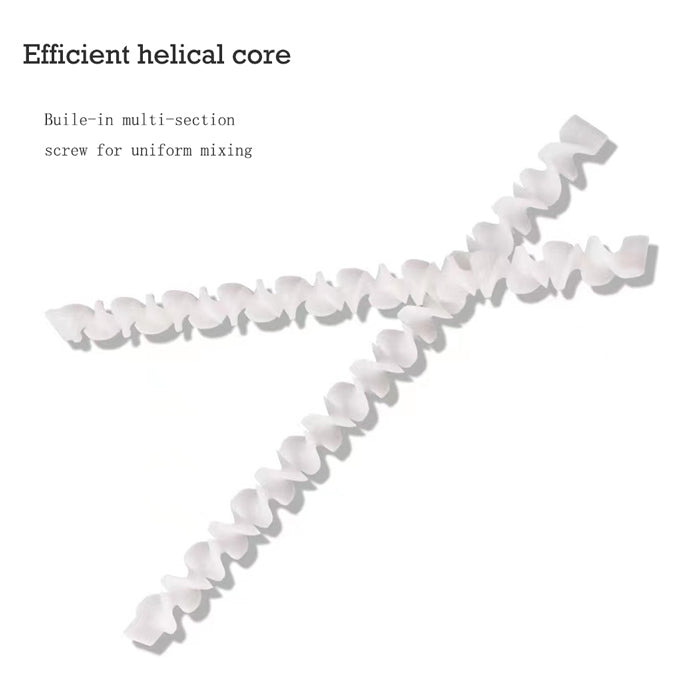

Mixer Technology: Spiral mixer

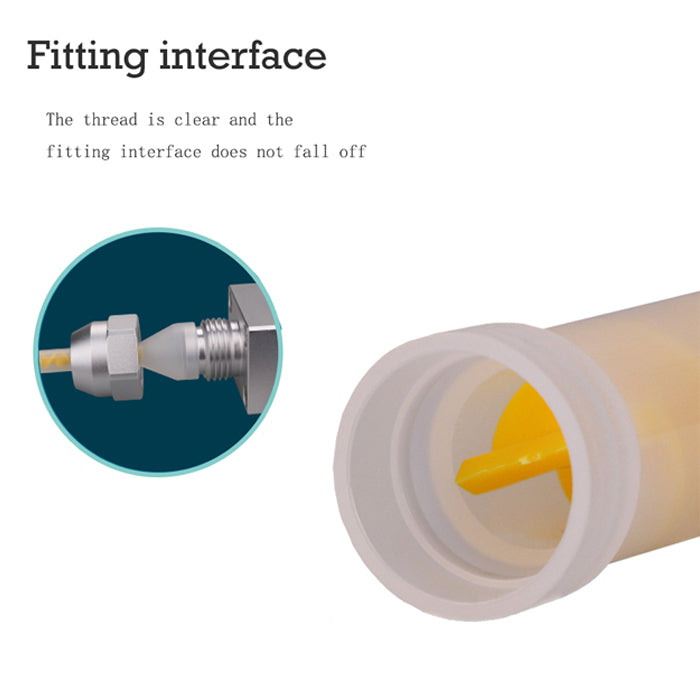

Housing Inlet: Bell connection

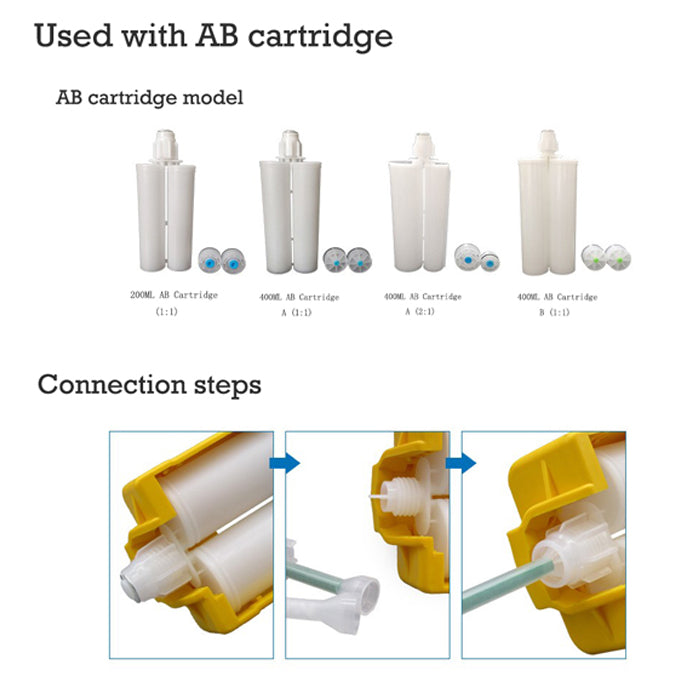

Cartridge Size: 200 ml/400 ml
Material: Plastic
Units / Box: 50/100 pieces

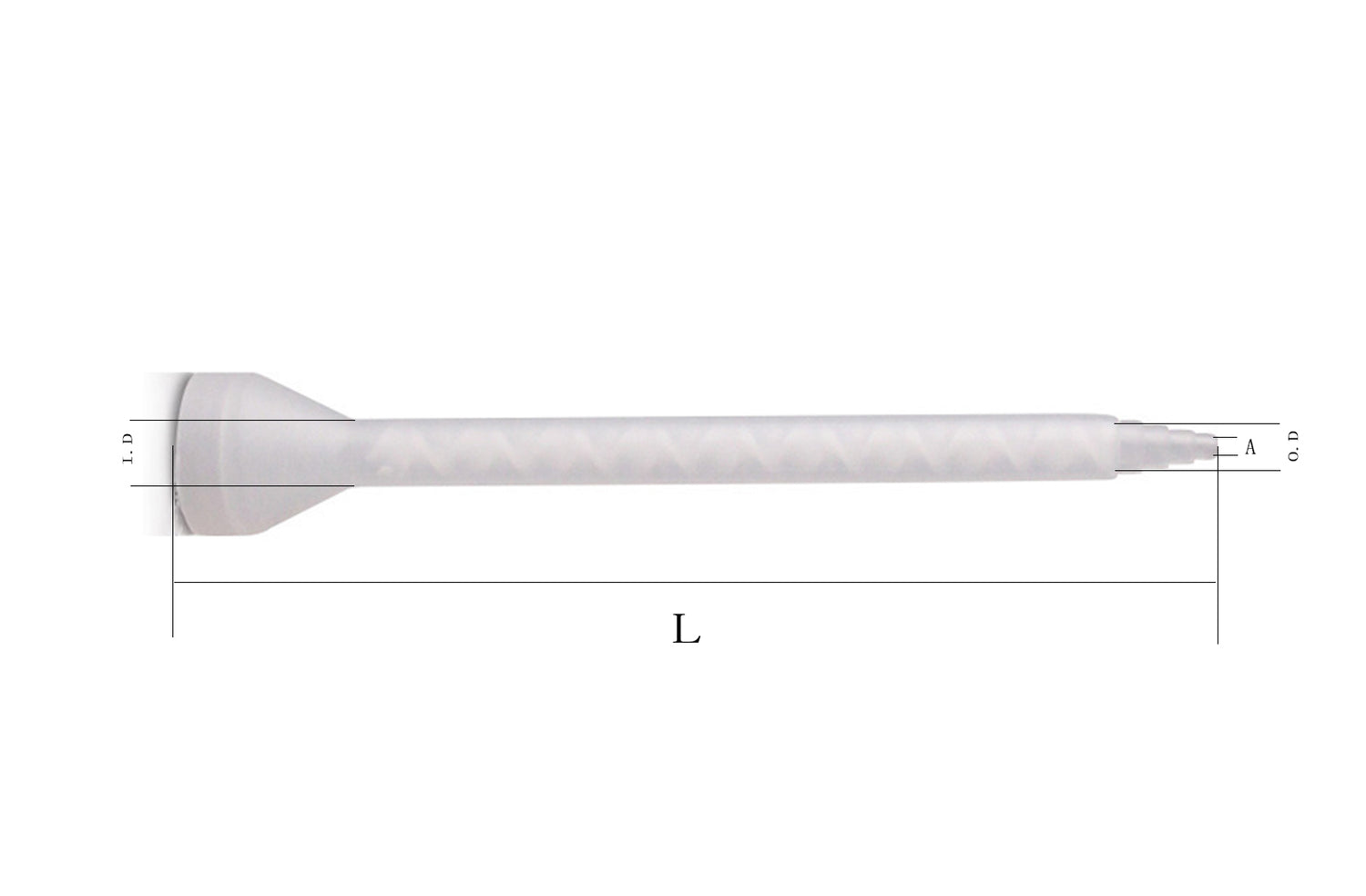

Dimensions
Dimensions

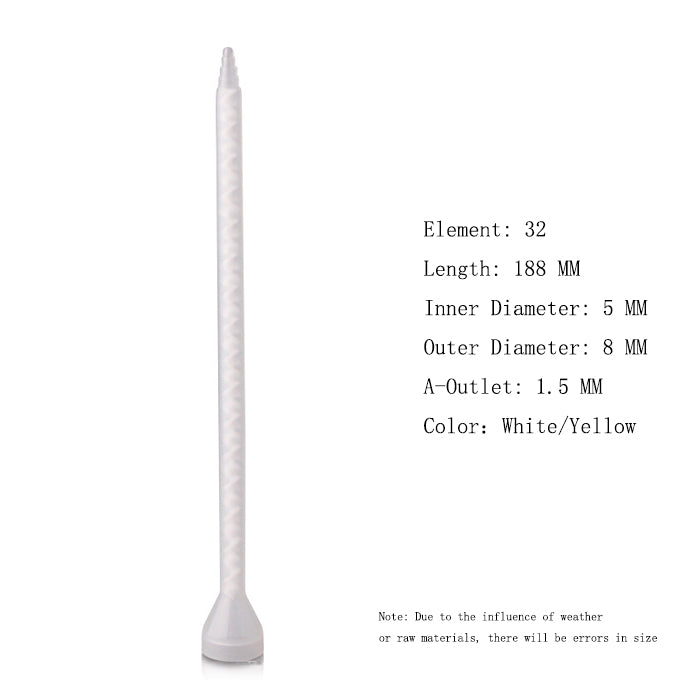

| No. | B5 | B6 | B7 |

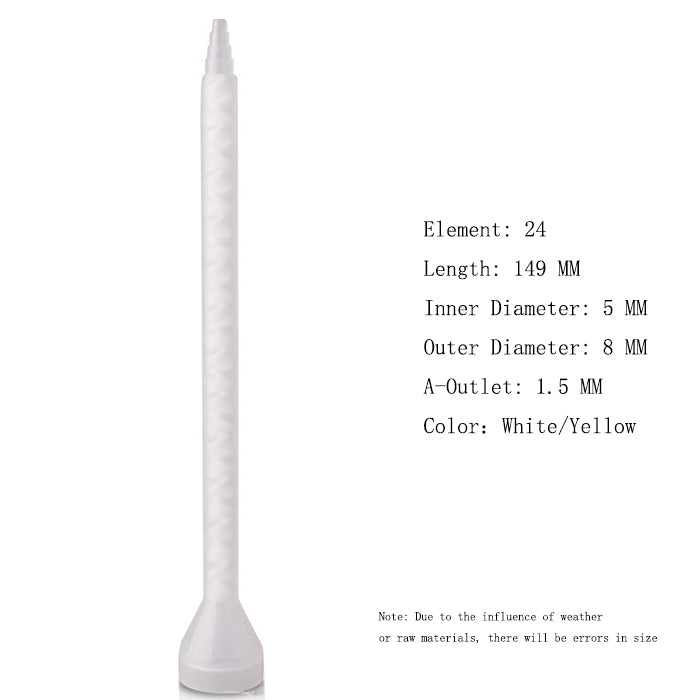

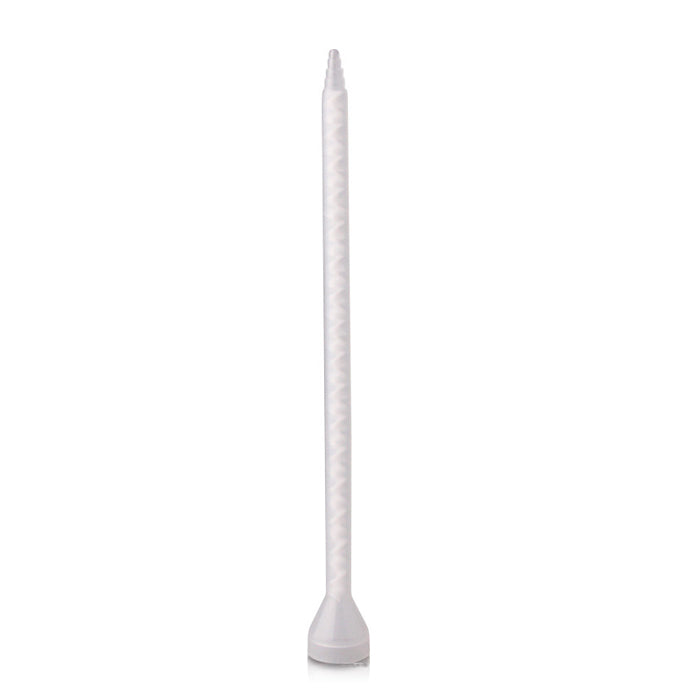

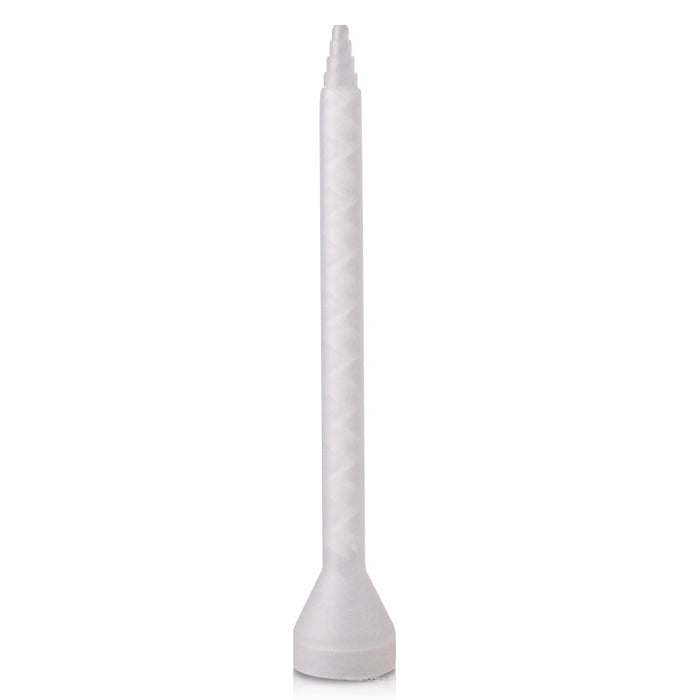

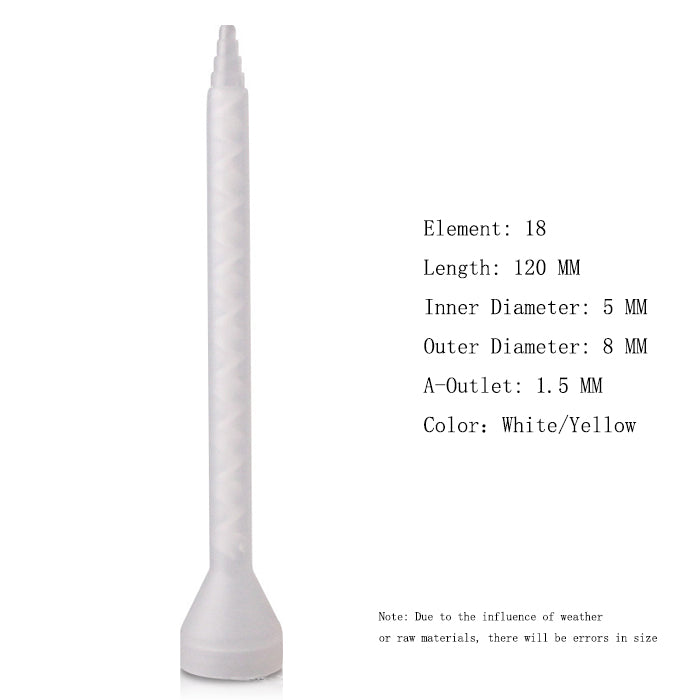

| Part No. | PMC05-18 | PMC05-24 | PMS05-32 |
| Elements | 18 | 24 | 32 |
| I.D.(mm) | 5 | 5 | 5 |
| L(mm) | 120 | 149 | 188 |
| O.D.(mm) | 8 | 8 | 8 |
| A(mm) | 1.5 | 1.5 | 1.5 |
| Inner-core Color | White/Yellow | White/Yellow | White/Yellow |
-
