Epoxy Mixing Nozzles for Two-Part Adhesive 8 MM I.D.
Epoxy Mixing Nozzles for Two-Part Adhesive 8 MM I.D.
Regular price
$39.99 USD
Regular price
$39.99 USD
Sale price
$39.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

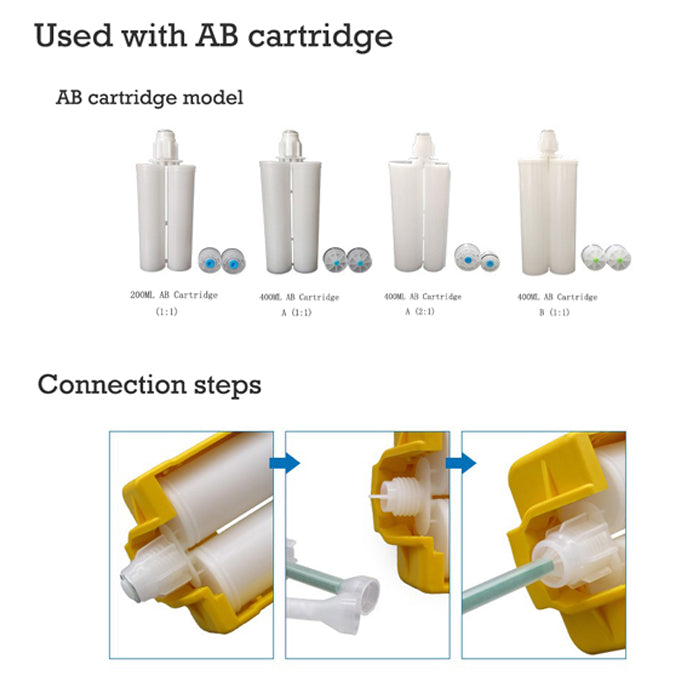

STANDARD DESIGN - The Btektech mixing nozzles are made of plastic material, with bell-mouth and spiral inner-core, suitable for all standard 200 ml or 400 ml cartridges, the inside diameter is 8 mm. Btektech PMC08-18 can replace Sulzer Mixpac MCH 08-18T or 102421, Btektech PMC08-24 can replace Sulzer Mixpac MCH 08-24T or 102424, Btektech PMC08-32 can replace Sulzer Mixpac MCH 08-32T or 102425.
APPLICATION - It is often used for the high-pressure operation of glue filling machines,
can be used as a handheld device or mounted on a stand or robot, for the mixing of epoxies, composites silicones, polyurethanes, and methyl methacrylates.
EASY CLEANUP - Disposable nozzle and tube, easy to clean, no need for mixing and stirring tools to clean.
APPLICATION - It is often used for the high-pressure operation of glue filling machines,
can be used as a handheld device or mounted on a stand or robot, for the mixing of epoxies, composites silicones, polyurethanes, and methyl methacrylates.
EASY CLEANUP - Disposable nozzle and tube, easy to clean, no need for mixing and stirring tools to clean.
Details
Details

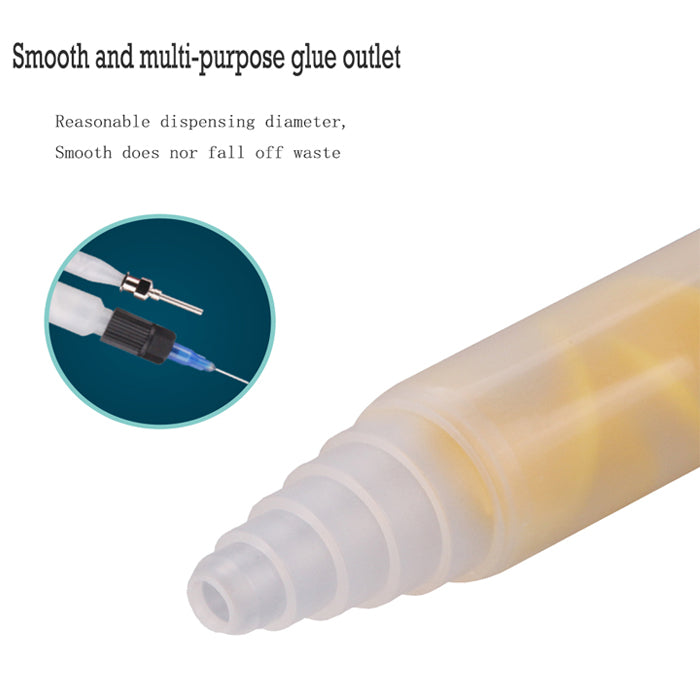

Housing Outlet: Stepped

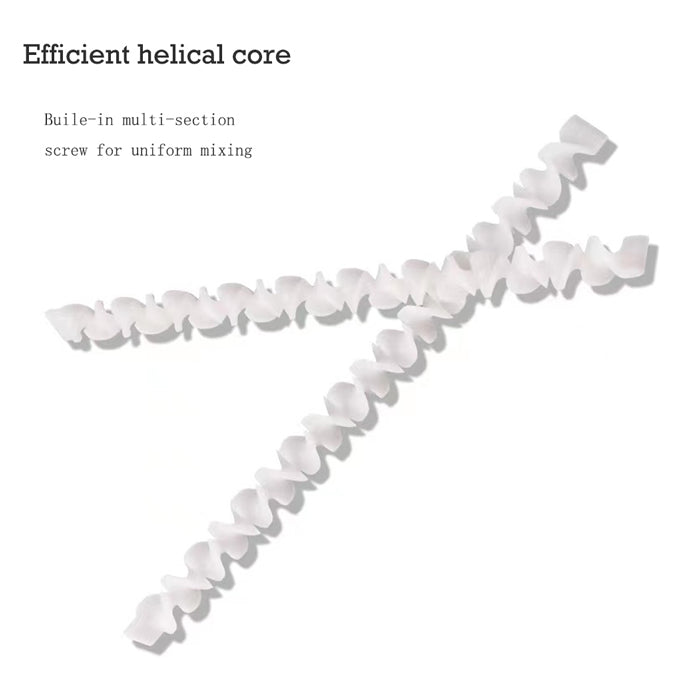

Mixer Technology: Spiral mixer

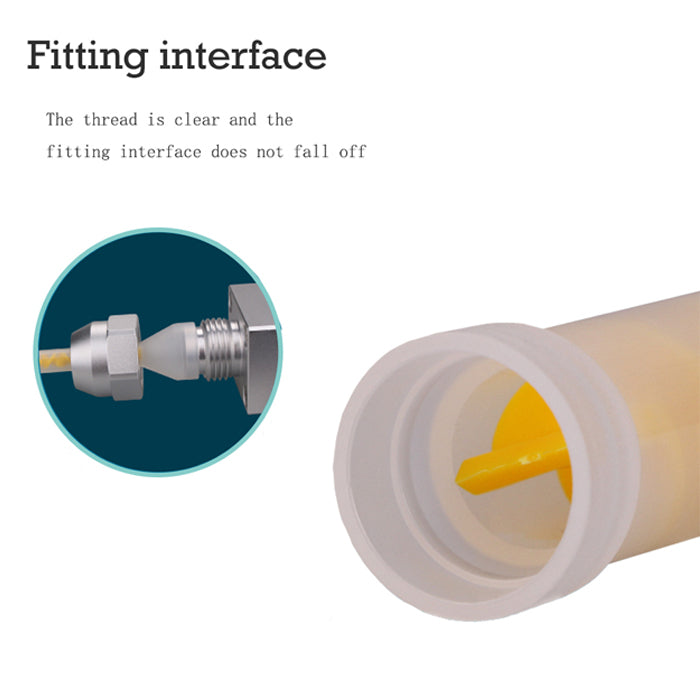

Housing Inlet: Bell connection
Cartridge Size: 200 ml/400 ml
Material: Plastic
Units / Box: 50/100 pieces

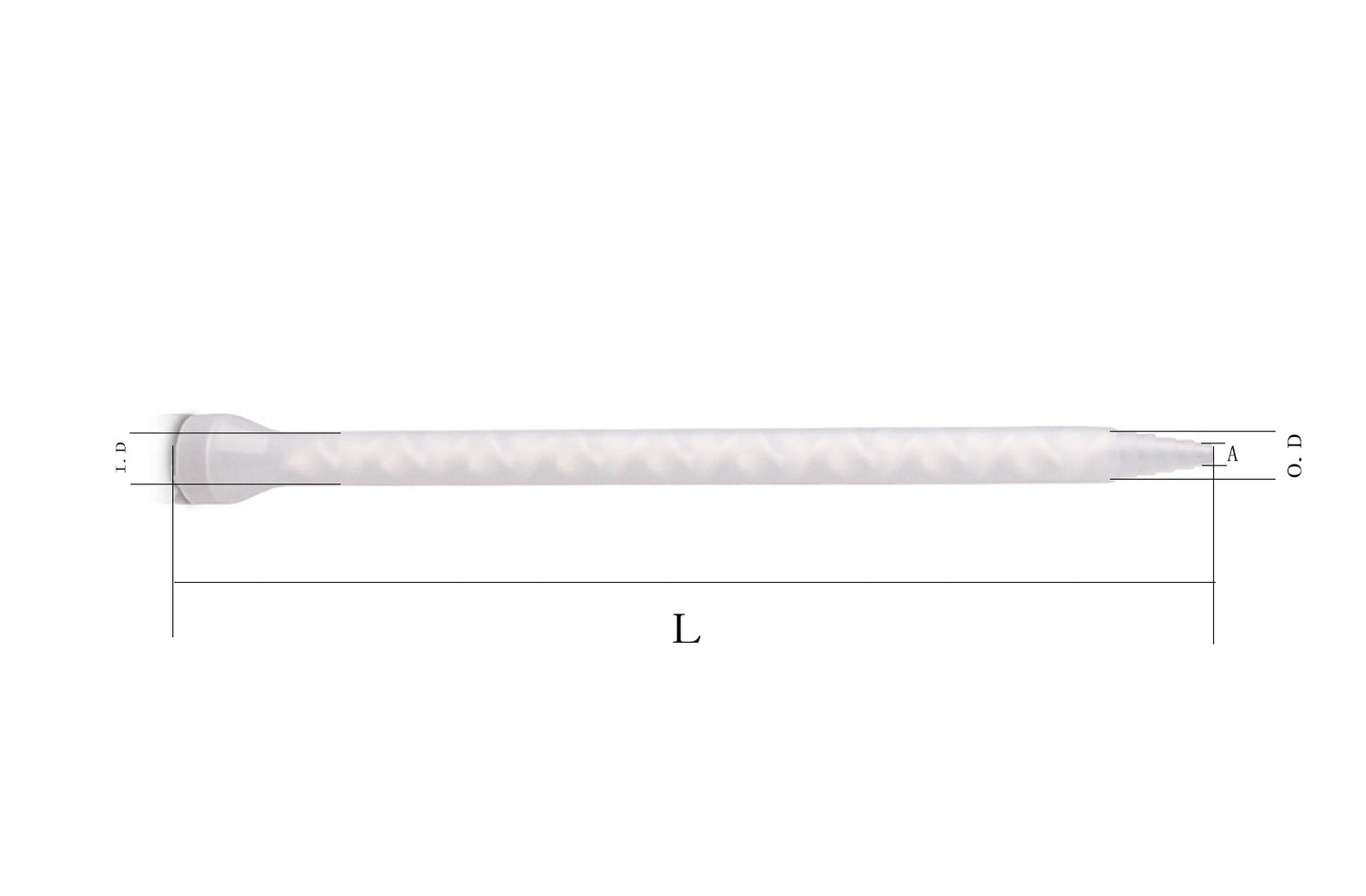

Dimensions
Dimensions

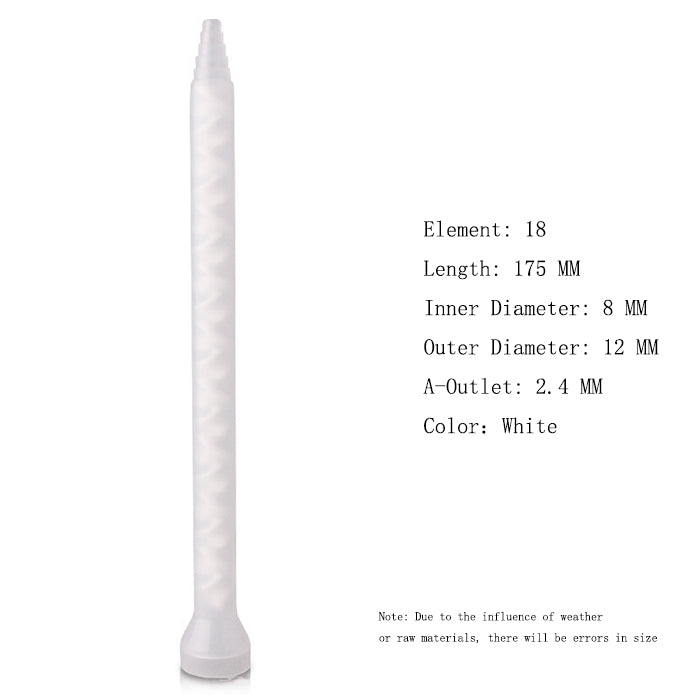

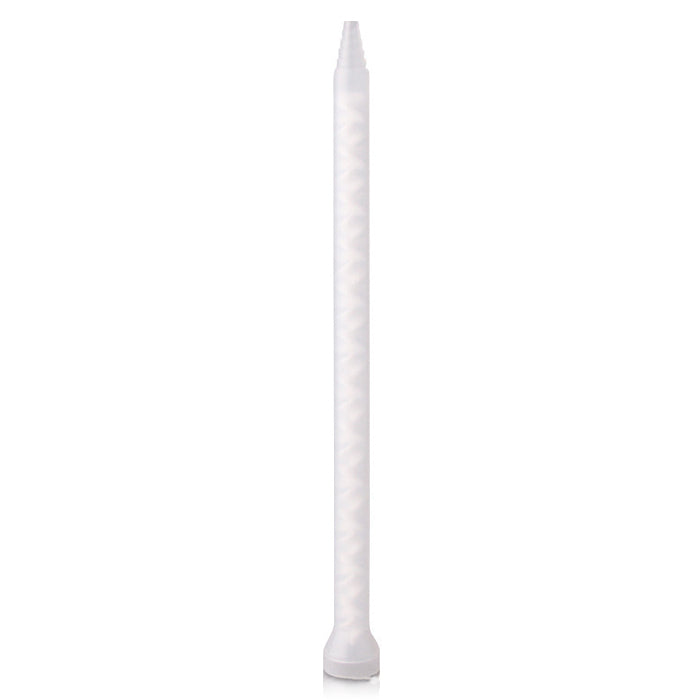

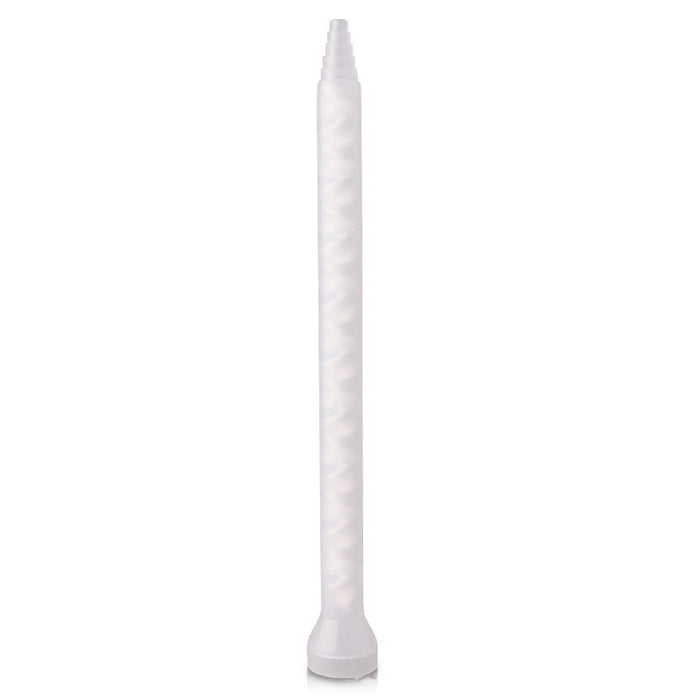

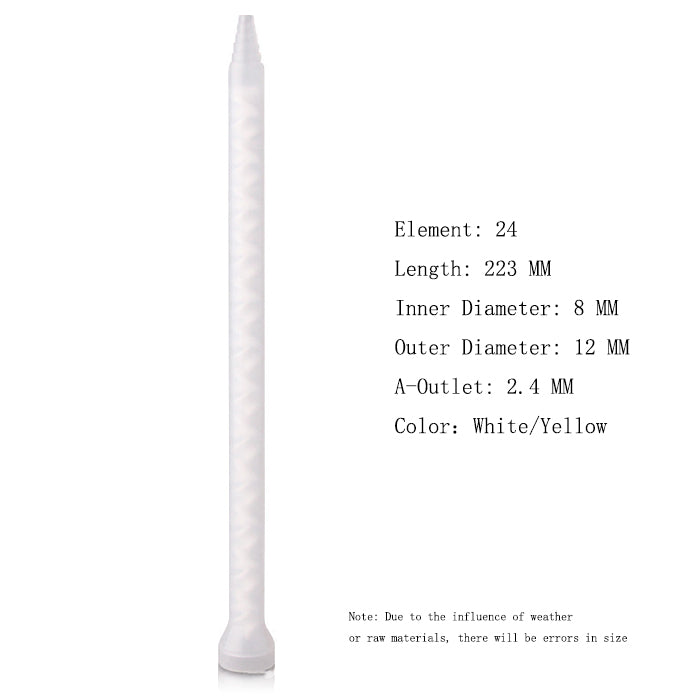

| No. | B11 | B12 | B13 |

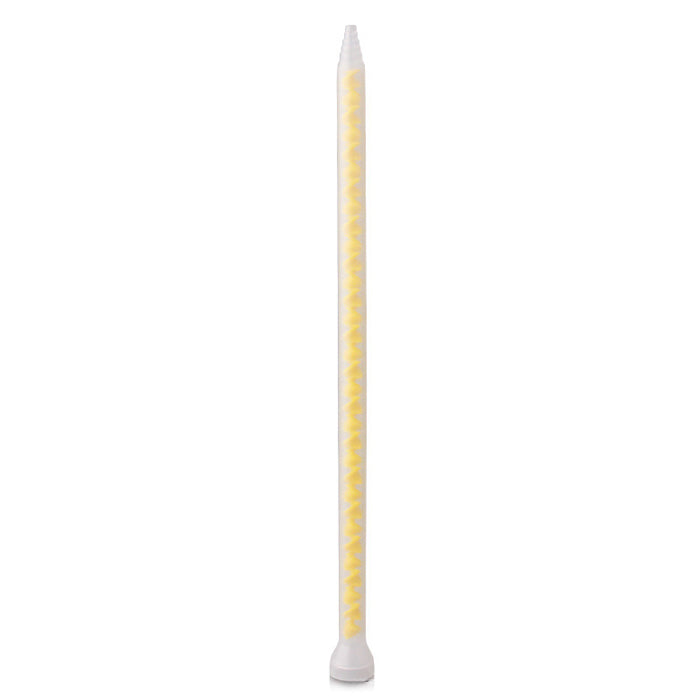

| Part No. | PMC08-18 | PMC08-24 | PMC08-32 |
| Elements | 18 | 24 | 32 |
| I.D.(mm) | 8 | 8 | 8 |
| L(mm) | 234 | 175 | 223 |
| O.D.(mm) | 12 | 12 | 12 |
| A(mm) | 2.4 | 2.4 | 2.4 |
| Inner-core Color | White | White/Yellow | White/Yellow |
-
